Sample-Efficient Post-Training for LEGO Spatial-Physics Reasoning

Abstract

Large language models can generate executable LEGO assembly programs from text, but their performance is strongly affected by noisy supervision and shortcut-prone training data. We identify a PhysHack phenomenon: models may achieve high physical validity while failing to preserve object-level semantics. To address this, we propose a sample-efficient post-training framework that combines value-guided data selection with Physics--Voxel Policy Optimization (PVPO). We first select only 5% high-value demonstrations using VLM semantic scores and diversity, then optimize models with a coupled reward combining physical validity and voxel-space geometric alignment. Experiments show that our method improves semantic alignment, geometry fidelity, and stability while using substantially less data than full-scale training.

Problem: PhysHack

LEGO Brick Assembly asks models to generate building steps that are both physically stable and match the prompt. PhysHack is when the model only follows the rules of assembly, but ignores the intended shape or meaning.

A model can be physically valid without being semantically correct.

Focusing only on physical validity can lead to generic or misaligned results. This work combines careful data selection and a reward that considers both physics and geometry to improve outcomes.

Methods

Value-Guided Data Selection

This selection strategy is data-efficient: High-Value VLM + Diversity uses only 5% of the data but improves semantic alignment over noisy full-data supervision. Table 1 is shown in full below.

PVPO: Physics-Voxel Policy Optimization

PVPO jointly optimizes physical validity and voxel-space geometric alignment. The physical reward measures the fraction of valid bricks, while the voxel reward measures shape agreement with the target construction using symmetric voxel-space distance.

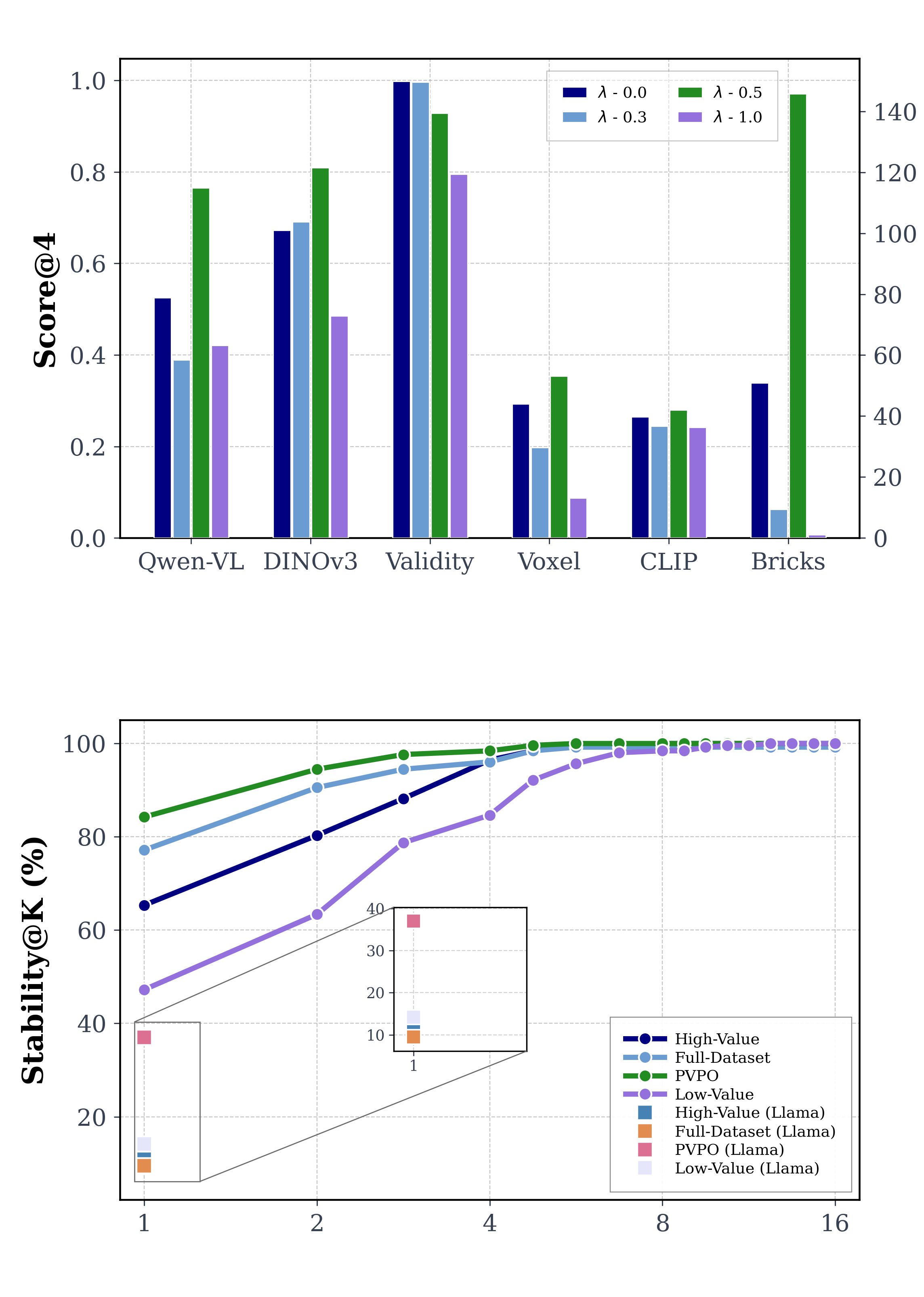

In the main experiments, λ = 0.5 provides the best balance between physical feasibility and structural fidelity. The ablation below visualizes how the voxel weight changes semantic alignment, physical validity, voxel alignment, and generated-brick count.

Results

The main result is sample-efficient improvement: only 5% high-value data plus PVPO surpasses full-data training on semantic alignment and geometry while preserving physical validity.

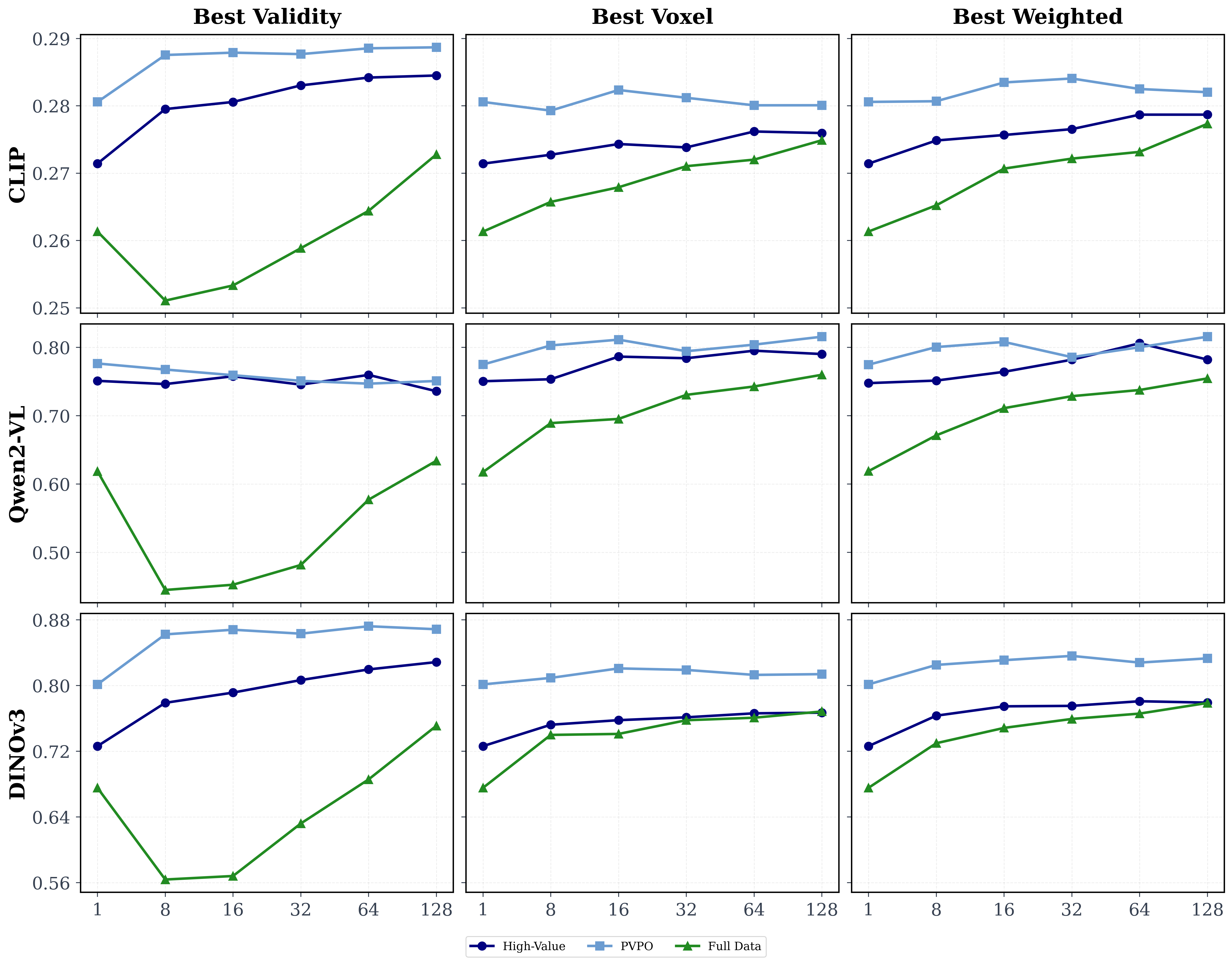

Test-Time Scaling on Physics–Structure Alignment.

Increasing the test-time sample budget improves physics--structure alignment by giving the model more opportunities to select generations with stronger visual-semantic and geometric scores under best@k selection.

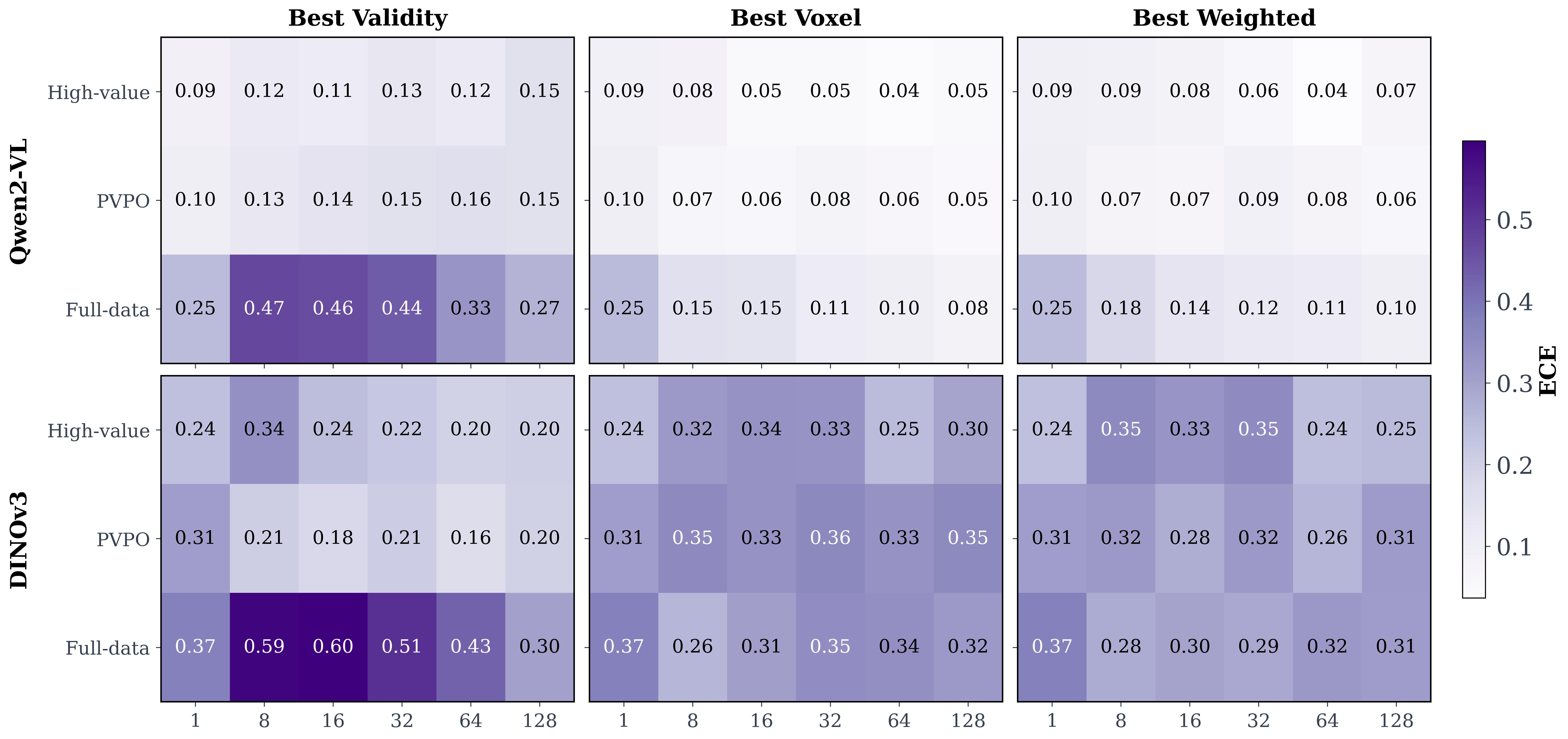

Calibration

Confidence calibration compares different best@k selection mechanisms against semantic alignment metrics, diagnosing whether confidence tracks structural and visual quality.

Qualitative Gallery

The qualitative comparison is the most direct view of the method: PVPO and high-value data reduce collisions and improve object-level structure compared with full-data training.

BibTeX

@misc{yuan2026sampleefficientposttraininglegospatialphysics,
      title={Sample-Efficient Post-Training for LEGO Spatial-Physics Reasoning},
      author={Yuhuan Yuan and Zhouliang Yu and Minghao Liu and Weiyang Liu and Ge Lin Kan},
      year={2026},
      eprint={2606.07602},
      archivePrefix={arXiv},
      primaryClass={cs.LG},
      url={https://arxiv.org/abs/2606.07602},
}
